100KG/H Automatic French Fries Making Machine Price in Pakistan

Min order: 1 set
Capacity: 100 sets per month
Loading Port: Qingdao Port

Chat Online Get Price

Introduction of Automatic French Fries Making Machine
This machine is a fully automatic fries equipment, mainly used for cleaning, peeling, stripping, blanching, dehydrating, frying, deoiling, seasoning, and then packaging the finished french fries.

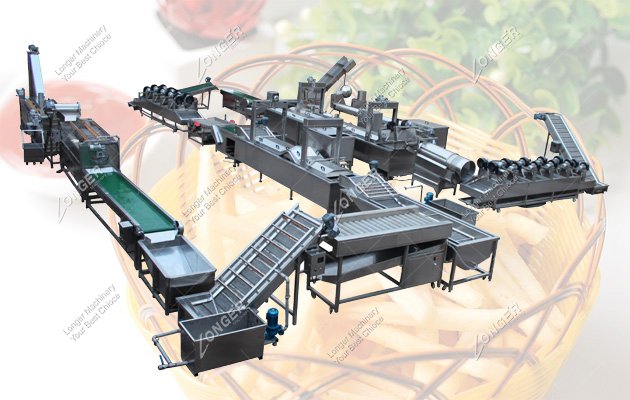

Fully Automatic French Fries Making Machine
Features of French Fries Processing Machine
1. High quality: All machines are made of stainless steel 304, producing the french fry is harmless that compliant with food hygiene and safety.
2. This fully automatic french fries production line can make potato sticks of 100kg/h, 300kg/h, 500kg/h, 1000kg/h, etc, saving labor, improving efficiency.
3. Real fries production line manufacturer with affordable price, have a professional technical R & D team, after-sales team.
4. High efficiency and large output, this french fries making machine can be used in fries factories and potato chip processing factories.
5. The key parts of the automatic french fries making machine are made of high-quality, well-known brands parts.
6. Factory price, and highly automated, the french fries making machine has been exported to many countries, such as Sudan, Pakistan, Turkey, Germany, etc.

Working Video of French Fries Making Machine


Main Parts of Automatic French Fries Making Machine
1. Washing & Peeling Machine: The potatoes is driven by the screw to realize the automatic feeding, high efficiency in cleaning and peeling.
2. French Fires Strip Cutting Machine: Cutting the potatoes into strips in high efficiency, can adjustable cut potato strip size.
3. Blanching Machine: It makes the french fries maintains the original fresh color, which is conducive to the evaporation of water and the later frying.
4. Vibrating De-watering Machine: It is made of 304 stainless steel, the surface moisture of french fry is removed by high frequency vibration.
5. Fryer Machine: This continuous frying machine adopts electric & gas heating method, the machine is made of high quality 304 stainless steel.
6. Vibrating Oil-Removing Machine: At the high frequency of the vibrating motor, the oil of the potato chip is fully removed, and the material moves into the main air route in the vibration state.
7. Air Drying Machine: The high pressure wind of the blower will cool the food and blow dry the oil on the surface of the potato.

Steps of Industrial French Fries Processing
Elevator --- Washing and Peeling Machine --- Elevator --- Sorting Conveyor --- French Fries Cutting Machine --- Elevator --- Lmpurity Removing Machine --- Rinsing Machine --- Blanching Machine ---Vibrating De-watering Machine --- Air De-watering Machine --- Stainless Steel Elevator --- Continuous Fryer Machine --- Oil Filting Machine --- Vibrating Oil-Removing Machine --- Seasoning Machine

Item
Power
Dimension
1. Elevator
0.75kw/380v/50Hz
2000*800*1600mm
2. Cleaning and Peeling Machine
4.75kw/380v/50Hz
3100*900*1500mm
3. Sorting Conveyor
0.75kw/380v/50Hz
3000*900*900mm
4. Potato Chips Cutting Machine
1.1kw/380v/50Hz
950*800*950mm
5. Rinsing Machine
5kw/380v/50Hz
5000*1600*900mm
6. Blanching Machine
70kw/380v/50Hz
6000*1600*950mm
7. Air De-water Machine
15kw/380v/50Hz
4000*1200*1400mm
8. Elevator
0.75kw/380v/50hz
1500*800*1300mm
9. Electric Heating Potato Chips Fryer Machine
203kw/380v/50Hz
7000*1200*2600mm
10. Oil Filter Machine
1.5kw/380V
1100*600*950mm
11. Vibrating De-oil Machine
1.5kw/380v/50Hz
1500*1000*1300mm
12. Air Drying Machine
8kw/380v/50Hz
4000*1200*1600mm
13. Elevator
0.75kw/380v/50Hz
2000*800*2200mm
14. Flavoring Machine
1.5kw/380v/50hz
2400*1000*1600mm
